Product Characteristic

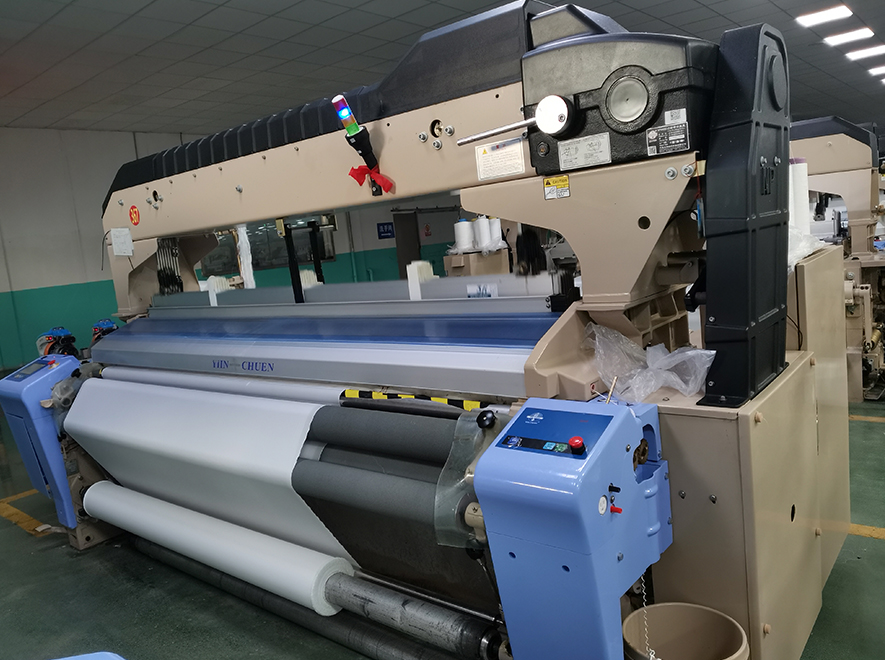

JW851-190 is our specially designed new style water-jet loom. The whole framestructure has been reinforced.And the bearing surface of main cross beam islarge.The sturdy frame structure realizes reduced vibration, and stabilized fill-ing insertion and beating motion during high-speed operation. Fabric quality iskept high;innovation desing on drive system,shedding thick,let-off system,take up system.All these make it suitable for weaving high-density thick fabricat super high-speed.

The single-pump two nozzle electronic measuring & storage system, two-pumptwo nozzle electronic measuring & storage system, tappet shedding device anddobby shedding device are optional parts for this type water-jet loom.

Technical Parameters

Reed width:190,210,230,282,340,360cm

Filling insertion rate:2280M/minute Max

RPM:120ORPM Max

Amount of heald frame:2,4,6,8 pcs;12pcs max. for tappet

shedding type,16psc max. for dobby shedding type.

Power:2.2kw,2.8kw

Weft density:5~60 pick/cm

Kind of yarn apply

Nylon-6 filament

Nylon-non-sizing

Polyester filament

Polyester draw textured

Polyester spun yarn

Polyester high twisting yarn

Polyester PoY

Polyester non-sizing filament

O.P yarn

Taslon yarn
